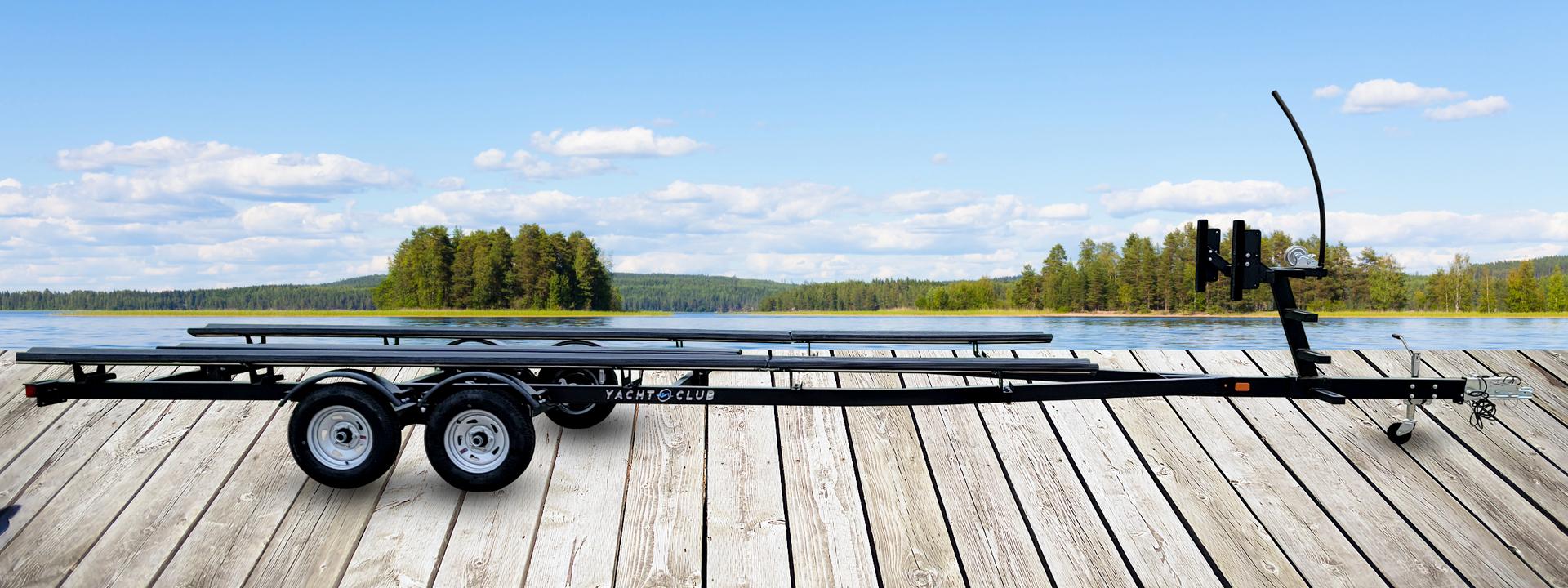

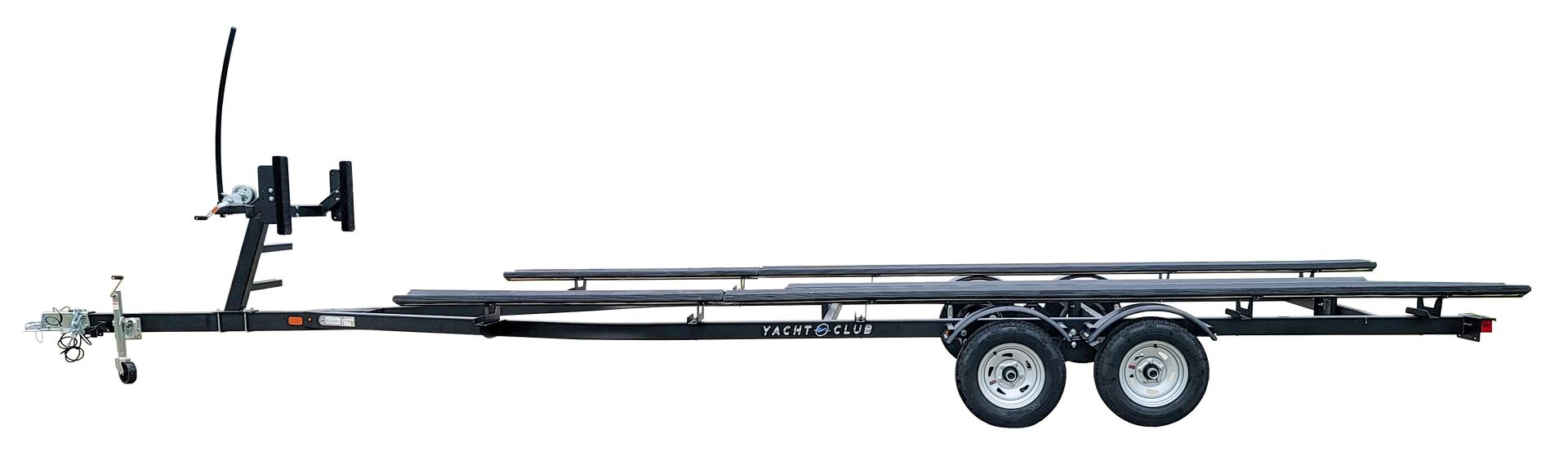

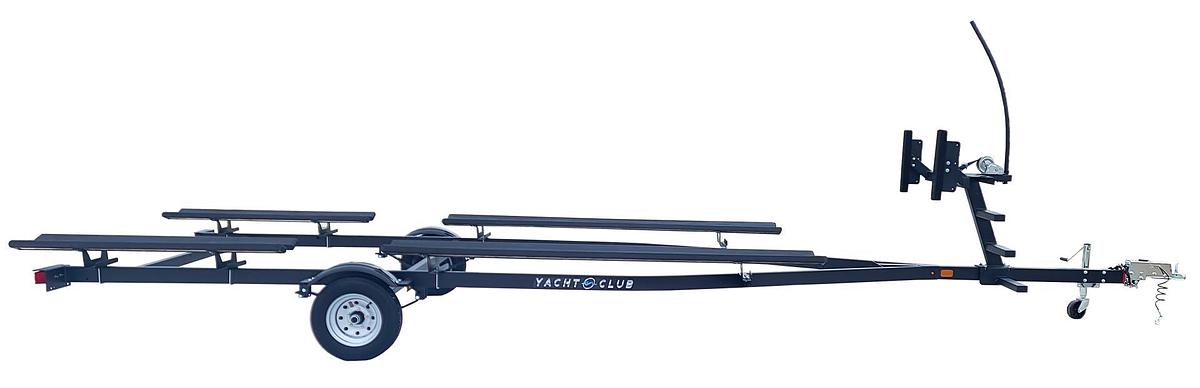

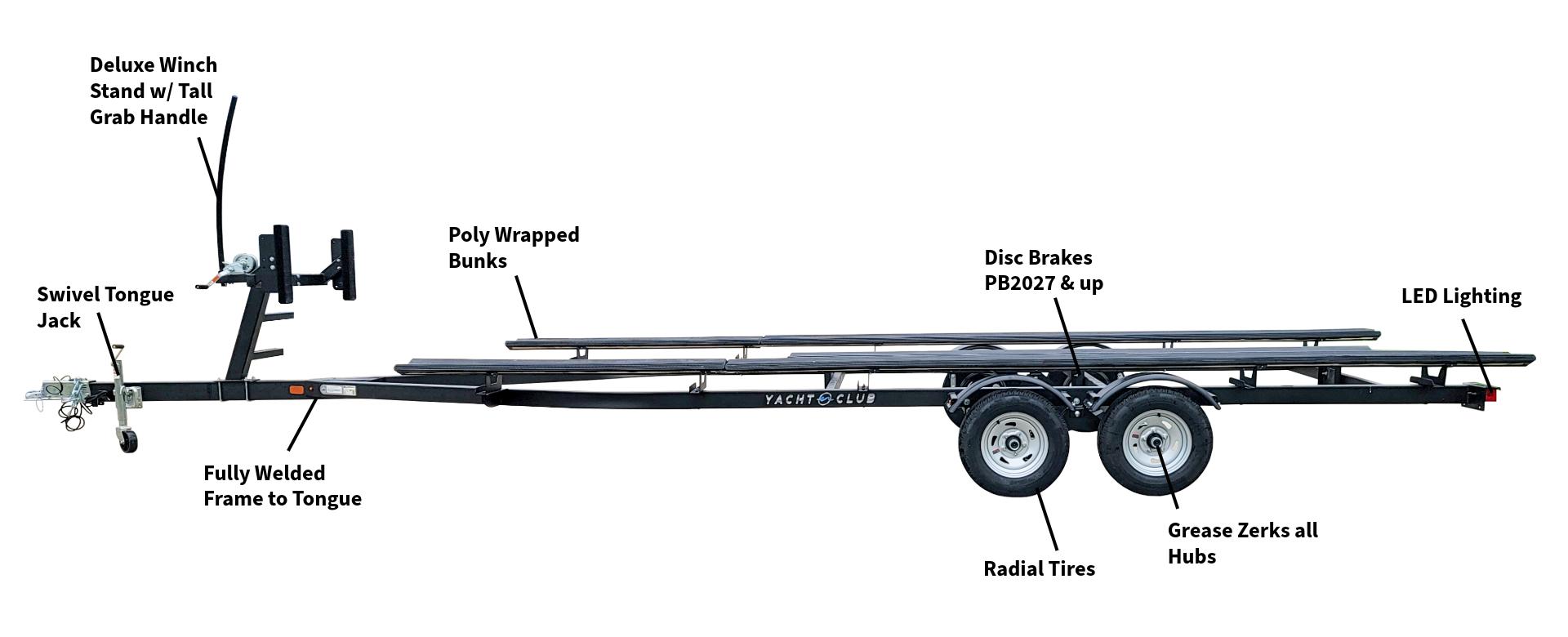

"PB" SERIES PONTOON TRAILER

or
Call 606-930-9344

Specifications

ManufacturerYacht Club Trailers
ConditionNew
Axles / BrakesPB1823: 1/0; PB2023: 1/0; PB2027: 1/1 Disc; PB2050T: 2/1 Disc; PB2227: 1/1 Disc; PB2250T: 2/1 Disc; PB2450T: 2/1 Disc; PB2650T: 2/1 Disc
Tube LengthPB1823: 16-18; PB2023: 18-20; PB2027: 18-20; PB2050T: 18-20; PB2227: 20-22; PB2250T: 20-22; PB2450T: 22-24; PB2650T: 24-26
Overall LengthPB1823: 23' 2"; PB2023: 25'3"; PB2027: 25'3"; PB2050T: 25'3"; PB2227: 27'11"; PB2250T: 27'11"; PB2450T: 29'10"; PB2650T: 31'11"
Carrying CapacityPB1823: 2300; PB2023: 2300; PB2027: 2700; PB2050T: 5000; PB2227: 2700; PB2250T: 5000; PB2450T: 5000; PB2650T: 5000
Trailer WeightPB1823: 630; PB2023: 680; PB2027: 720; PB2050T: 1020; PB2227: 740; PB2250T: 1030; PB2450T: 1040; PB2650T: 1060
Pontoon WidthPB1823: 8' - 8'6"; PB2023: 8' - 8'6"; PB2027: 8' - 8'6"; PB2050T: 8' - 8'6"; PB2227: 8' - 8'6"; PB2250T: 8' - 8'6"; PB2450T: 8' - 8'6"; PB2650T: 8' - 8'6"

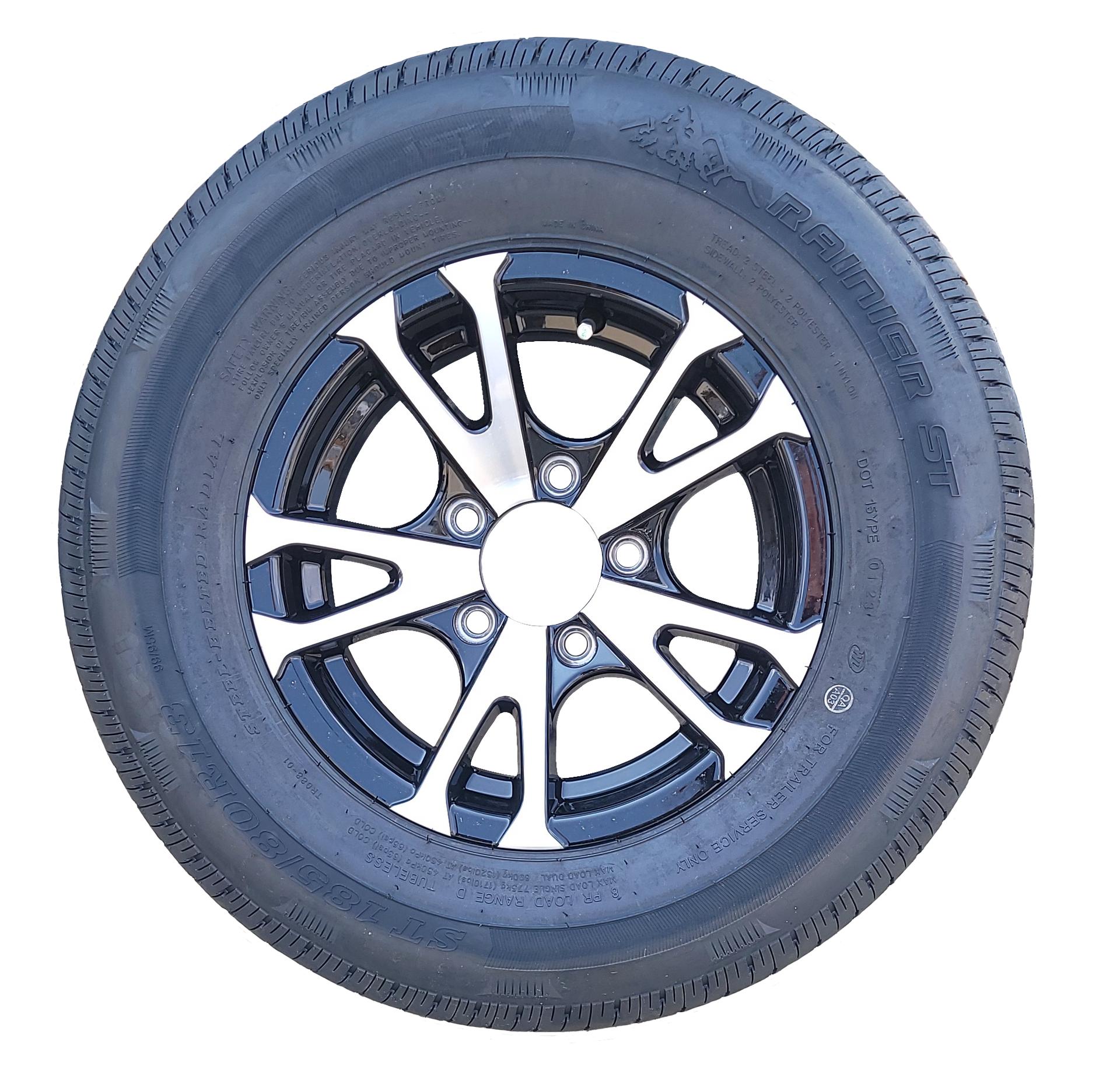

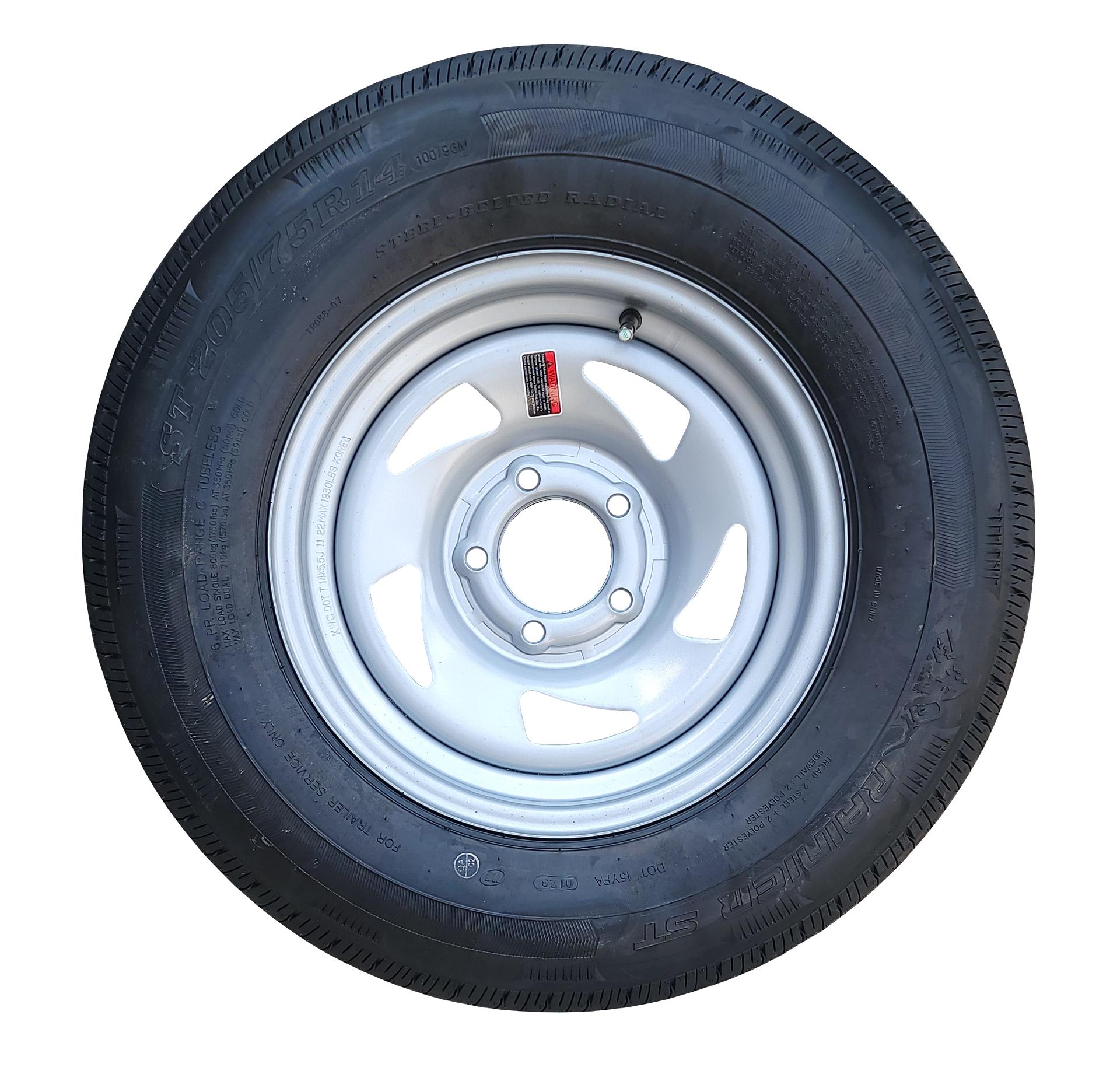

Tire SizePB1823: 145/R12E rad; PB2023: 145/R12E rad; PB2027: 205/R15C rad; PB2050T: 175/R13D rad; PB2227: 205/R15C rad; PB2250T: 175/R13D rad; PB2450T: 175/R13D rad; PB2650T: 175/R13D rad
