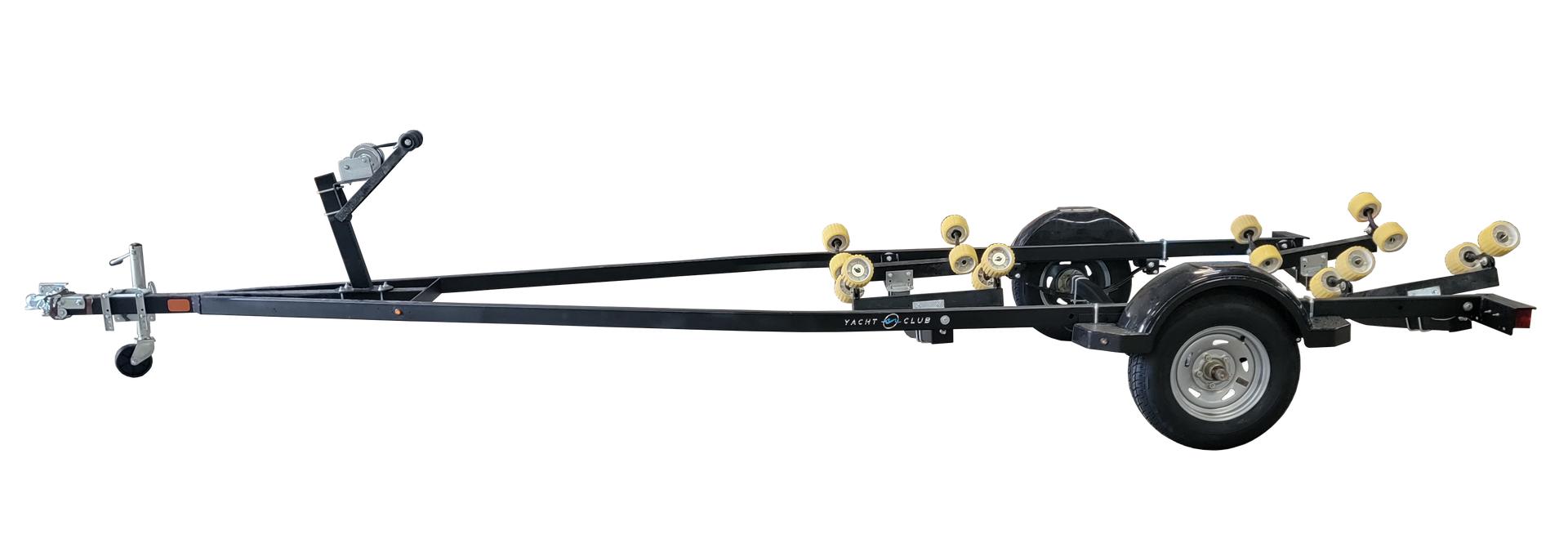

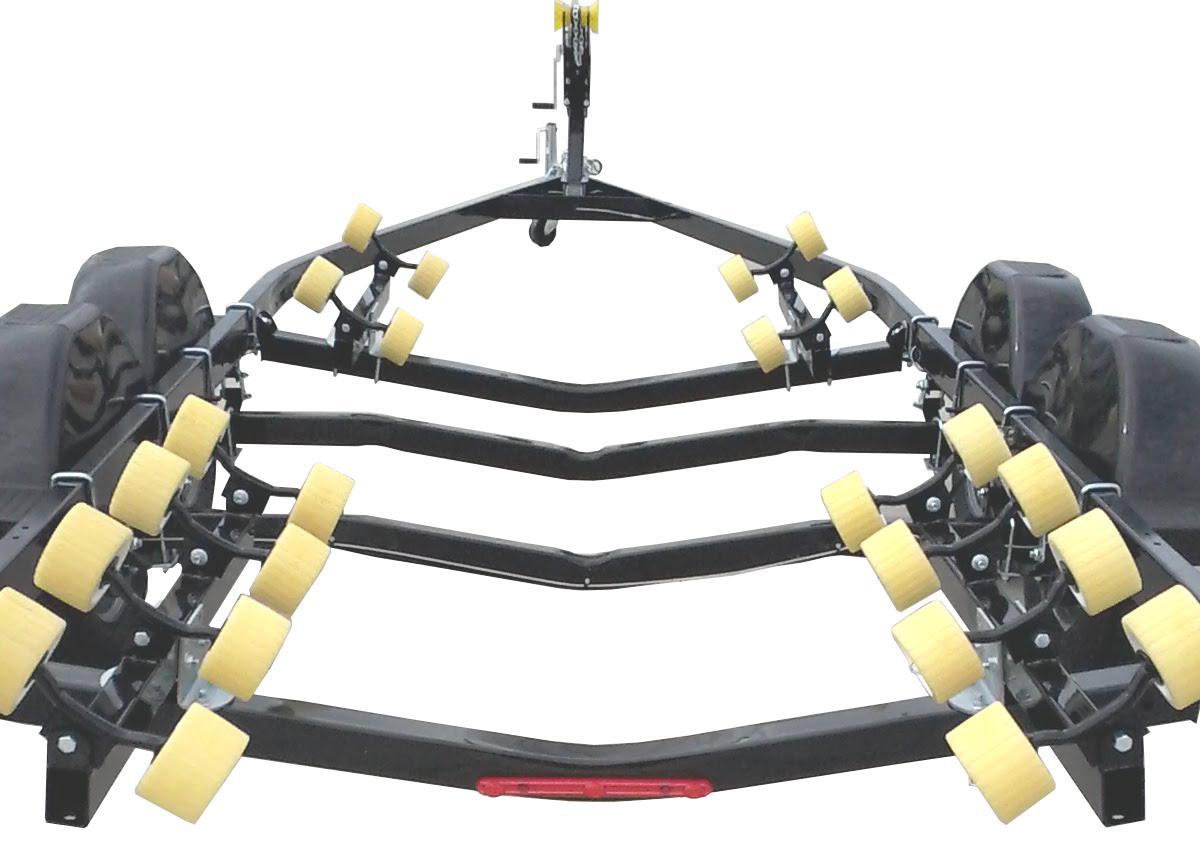

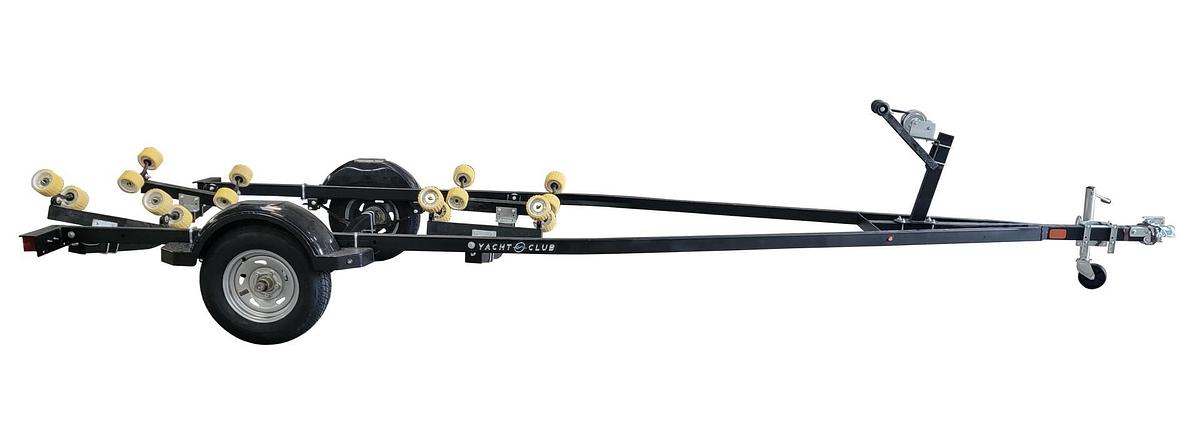

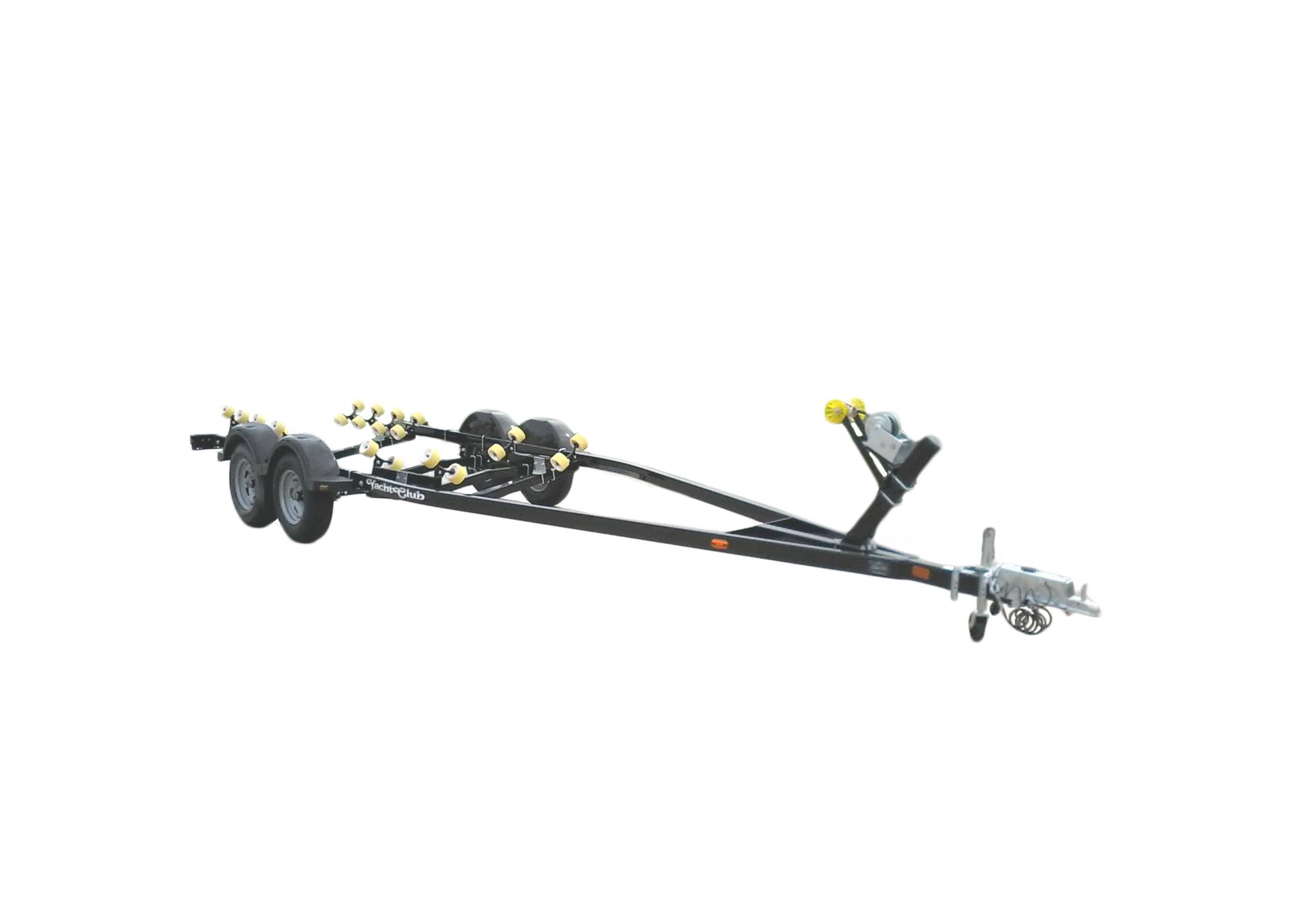

ROLLER SERIES TRAILER

Description

Standard FeaturesFully Welded Frame to Tongue

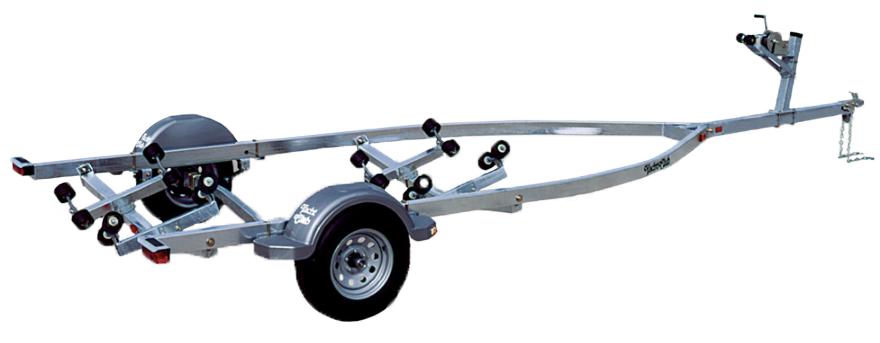

A Fully welded frame creates a cleaner overall look of the trailer, concealing and protecting the wiring inside of the welded tubes. Our Hot Dipped Galvanized trailer is dipped after the frame is welded together making the frame more durable.

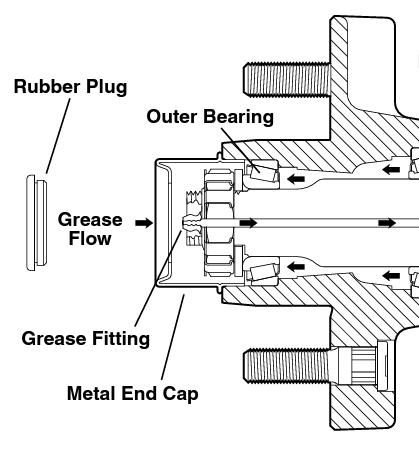

Grease Zerks All Hubs

Maintaining your hubs is vital to longevity. Your Hubs should be greased every 12 months or 12,000 miles. Bearings rely on grease to keep out any debris from causing any premature wear to your hub components. With Zerks on every hub you will be able to maintain your trailer easily.

Polyester Texture Powder Coating

Polyester Textured Powder Coating is a type of coating much more durable than standard paint coating. Built to withstand harsh weathering for products made to be outdoors. The Coating is applied by free-flowing spray nozzles as dried powder which is electrostatically charged when sprayed onto material. Then it is baked to create a protective barrier by bonding the coating to the metal.

LED Lighting

LED Lights come with a lifetime warranty free from manufacturer defects, LED Lighting causes less downtime then incandescent lighting that burns out. Less Maintenance equals more time for fun. LED Lighting produces less energy.

Specifications

ManufacturerYacht Club Trailers
ConditionNew
Axles / BrakesR1612: 1/0; R1620: 1/0; R1715: 1/0; R1715W: 1/0; R1820: 1/0; R1825: 1/0; R1830: 1/1 Disc; R2052T: 2/1 Disc; R2055T: 2/1 Disc; R2252T: 2/1 Disc; R2255T: 2/1 Disc; R2480T: 2/2 Disc
Boat LengthR1612: 14 - 16; R1620: 14 - 16; R1715: 14.5 -16.5; R1715W: 14.5 -16.5; R1820: 16 - 18; R1825: 16 - 18; R1830: 16 - 18; R2052T: 18 - 20; R2055T: 18-20; R2252T: 20-22; R2255T: 20-22; R2480T: 22-24
Overall LengthR1612: 18' 7"; R1620: 18' 3"; R1715: 19' 5"; R1715W: 19' 5"; R1820: 20' 4"; R1825: 20' 3"
Carrying CapacityR1612: 1185; R1620: 2050; R1715: 1500; R1715W: 1500; R1820: 2050; R1825: 2450; R1830: 3000; R2052T: 5200; R2055T: 5500; R2252T: 5200; R2255T: 5550; R2480T: 8000
Trailer Weight lbsR1612: 375; R1620: 500; R1715: 450; R1715W: 455; R1820: 520; R1825: 560; R1830: 600; R2052T: 970; R2055T: 970; R2252T: 1050; R2255T: 1050; R2480T: 1340
Between FendersR1612: 51; R1620: 74; R1715: 64; R1715W: 68; R1820: 75; R1825: 79; R1830: 79; R2052T: 79; R2055T: 79; R2252T: 79; R2255T: 79; R2480T: 82

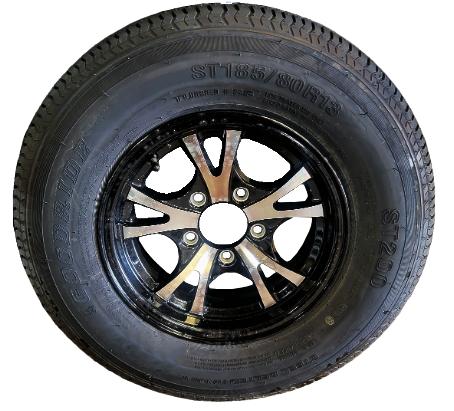

Tire SizeR1612: 4.80 x 12 B; R1620: ST175/80D13 C; R1715: ST175/80D13 C; R1715W: ST175/80D13 C; R1820: ST175/80D13 C; R1825: ST175/80D13 D; R1830: ST205/75D15 C; R2052T: ST175/80D13 D; R2055T: 185/13 D Alum/Rad; R2252T: ST175/80D13 D; R2255T: 185/13 D Alum/Rad; R2480T: 225/75R15E
